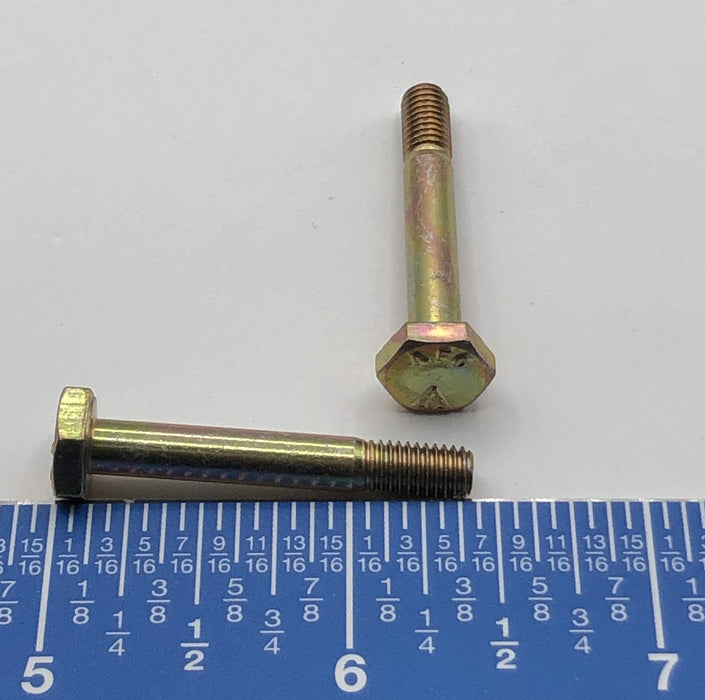

AN173-12A - Bolt

Hex head bolt featuring a precision-machined, partially threaded shank for enhanced shear strength and alignment. This bolt is designed for dependable performance in aerospace and mechanical assemblies requiring consistent clamping and structural integrity.

Dimensions

• L (Shank Length): 32.82 mm
• W (Head Diameter): 4.80 mm
• OL (Overall Length): 36.31 mm

Configuration

• Type: Hex head bolt
• Thread: Partially threaded
• Drive: External hex
• Point: Flat end
• Material/Finish: Steel with corrosion-resistant (cadmium-plated) finish
• Suffix “A”: Undrilled shank (no cotter pin hole)

Features

• Precision shank improves load distribution and alignment
• Partially threaded design minimizes stress concentration in shear applications
• Corrosion-resistant plating for durability in demanding environments
• Undrilled configuration suitable where cotter pin locking is not required
• Reliable aerospace-grade construction
