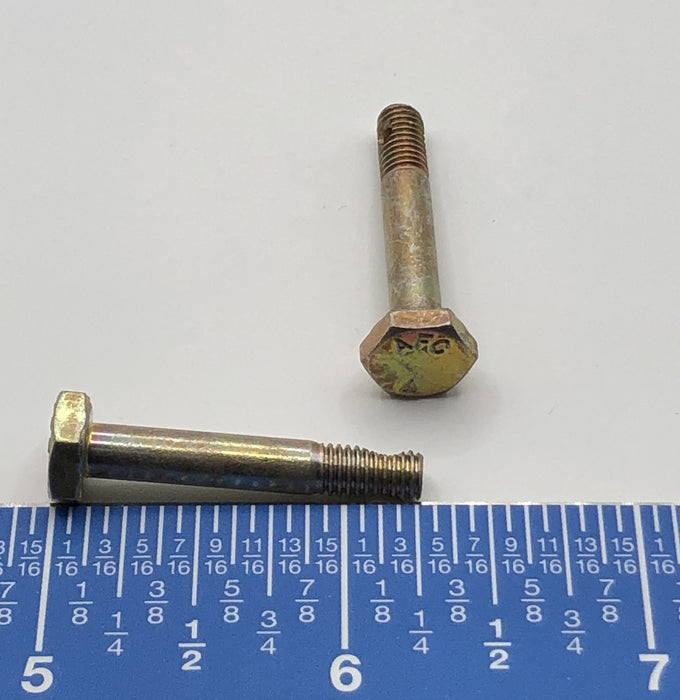

AN173-11 - Bolt

Hex head bolt featuring a precision-machined, partially threaded shank for improved shear strength and alignment. Designed for dependable performance in aerospace and mechanical assemblies where consistent clamping and structural reliability are required.

Dimensions

• L (Shank Length): 29.34 mm
• W (Head Diameter): 4.81 mm
• OL (Overall Length): 32.87 mm

Configuration

• Type: Hex head bolt
• Thread: Partially threaded
• Drive: External hex
• Point: Flat end
• Material/Finish: Steel with corrosion-resistant (cadmium-plated) finish

Features

• Precision shank enhances alignment and load distribution
• Partially threaded design minimizes stress concentration in shear applications
• Corrosion-resistant coating for durability in demanding environments
• Compact, lightweight fastener suitable for tight assemblies
• Aerospace-grade manufacturing ensures consistency and reliability
