4509 - Lamp

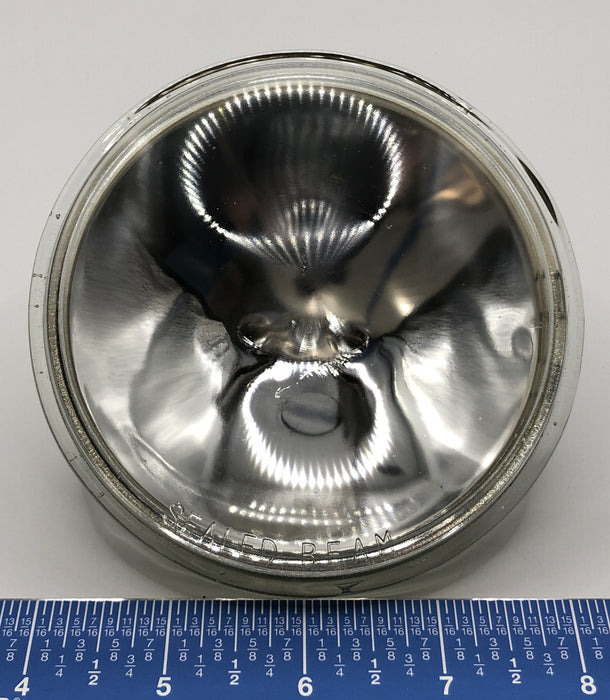

Sealed beam incandescent aircraft landing/taxi light designed for aviation, industrial, and specialty illumination applications. Part number 4509 features a round clear-glass sealed beam assembly with a high-efficiency internal aluminized reflector engineered to deliver concentrated forward illumination and reliable performance in high-vibration environments.

The lamp integrates the filament, reflector, and optical lens into a hermetically sealed housing that protects against moisture, dust, and contaminants. Rear dual terminal contacts provide secure electrical connectivity for aircraft and heavy-duty lighting systems.

Dimensions

• Height: 58.45 mm
• Diameter: 111.03 mm

Configuration

• Type: Sealed beam incandescent lamp
• Lens Style: Clear smooth lens
• Shape: Round sealed beam assembly

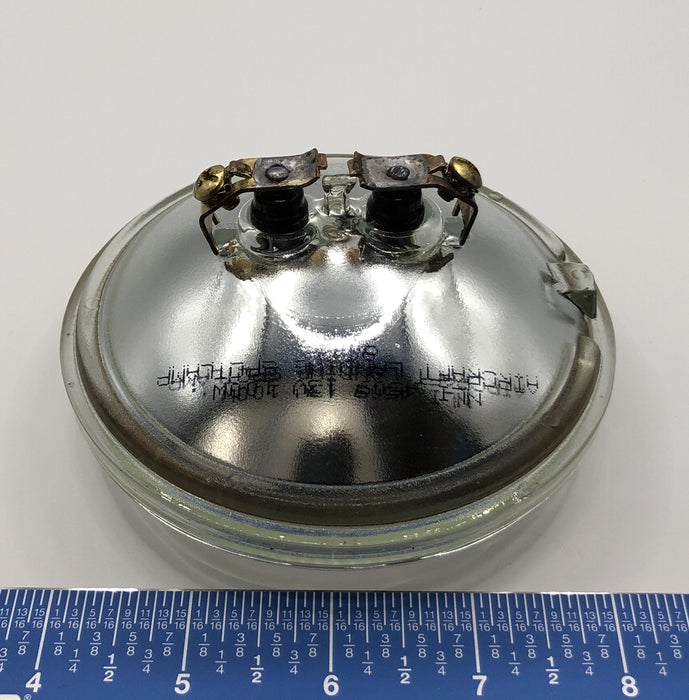

• Termination: Dual rear screw/spade terminal contacts
• Construction: Hermetically sealed glass reflector housing
• Features: Focused beam output, vibration resistant, moisture resistant, aerospace-grade durability
• Applications: Aircraft landing lights, taxi lights, inspection lighting, industrial vehicle lighting, and specialty illumination equipment
