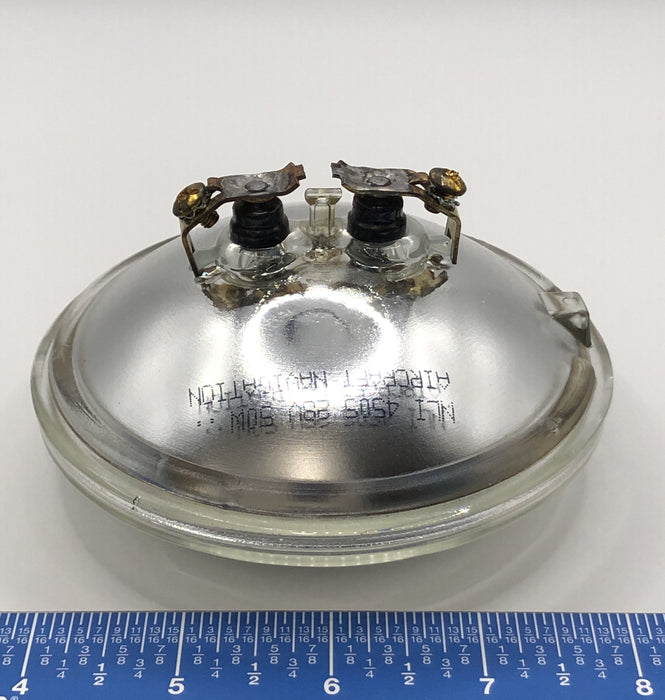

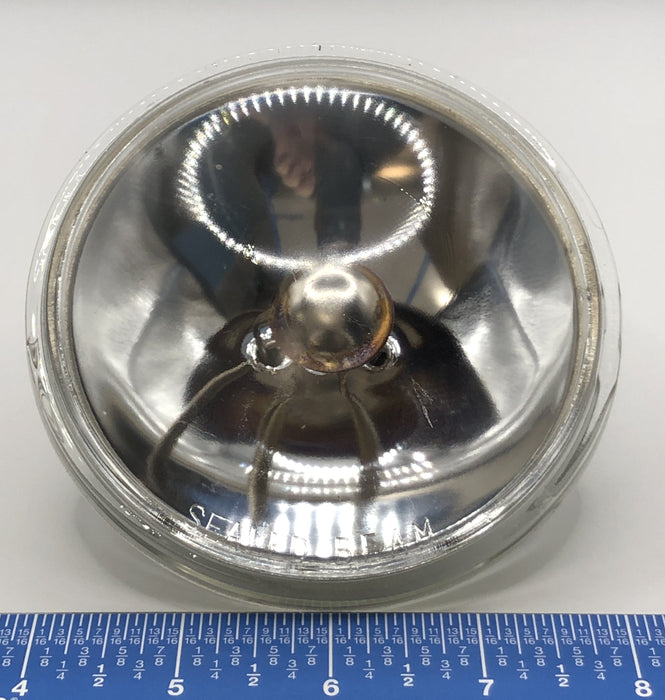

4505 - Lamp

Sealed beam incandescent lamp with an integrated parabolic reflector and clear glass lens, designed to deliver a focused, high-intensity beam for illumination and signaling applications. The fully enclosed construction protects the filament and reflector from dust, moisture, and vibration, ensuring reliable performance in demanding environments. Rear dual terminal connections provide secure electrical contact for fixed-mount systems.

Dimensions

• Diameter (OD): 110.48 mm
• Height (H): 58.45 mm

Electrical Specifications

• Voltage: 28V
• Power: 50W

Configuration

• Type: Sealed beam lamp
• Light Source: Incandescent filament
• Lens: Clear glass
• Reflector: Internal parabolic reflector
• Terminals: Dual rear screw terminals
• Mounting: Flanged perimeter for fixture retention

Features

• Sealed construction for environmental protection
• Integrated reflector for controlled beam output
• Shock-resistant design for mobile and industrial use
• Consistent beam pattern and brightness
• Suitable for low-voltage systems
