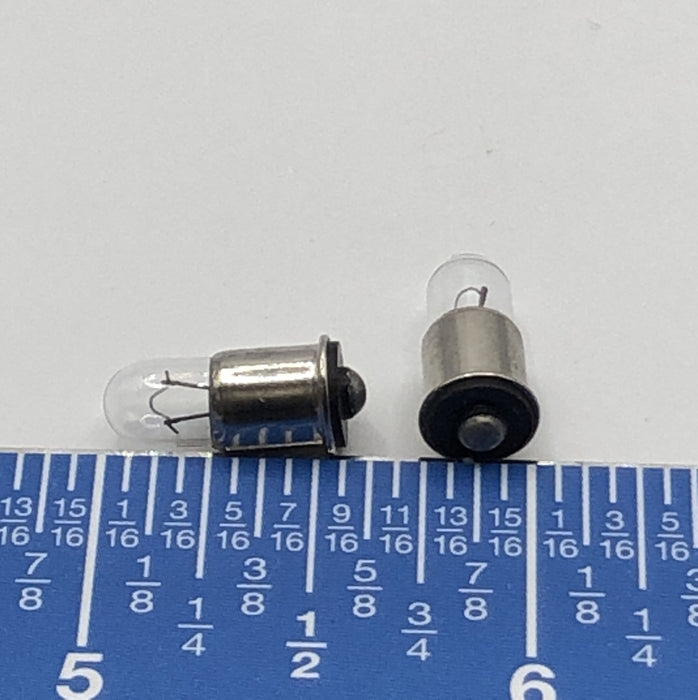

328 - Lamp

Compact miniature incandescent lamp designed for low-voltage indicator and instrument lighting. This bulb features a cylindrical metal base with a single bottom contact and insulating ring, making it ideal for panel-mounted sockets. The clear glass envelope ensures consistent light output, suitable for gauges, indicators, and small electronic assemblies.

Dimensions

• Overall Length (L): 15.68 mm
• Diameter (D): 6.26 mm

Electrical Specifications

• Voltage: 6V

Configuration

• Type: Miniature incandescent lamp
• Bulb Style: Clear glass envelope
• Base Type: Miniature bayonet / press-fit style (single contact)
• Contact: Bottom contact with insulated base
• Material: Glass bulb with metal base
• Finish: Nickel-plated base
