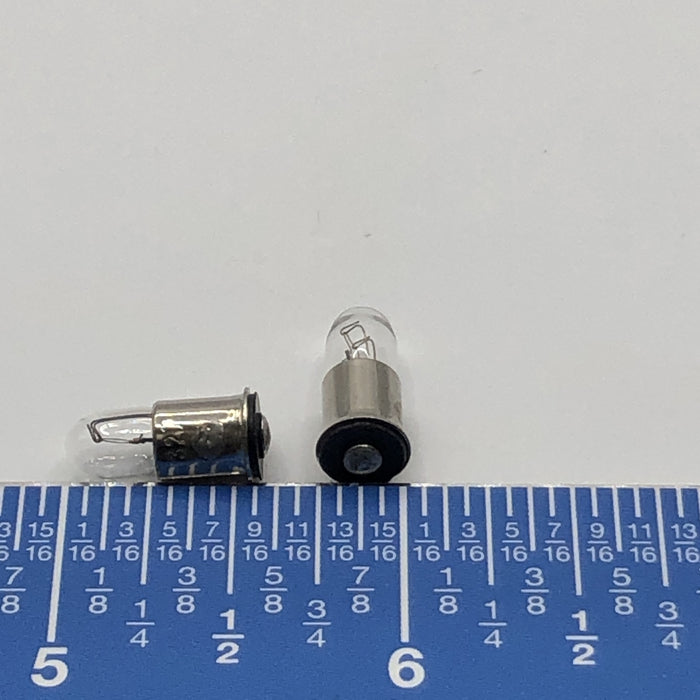

327 - Lamp

Compact miniature incandescent lamp designed for low-current indicator and instrument lighting applications. This bulb features a cylindrical metal base with a single-contact bottom and insulating ring, making it suitable for panel-mounted sockets. The clear glass envelope provides consistent, reliable illumination for gauges, status indicators, and control panels.

Dimensions

• Overall Length (L): 15.55 mm
• Diameter (D): 6.16 mm

Electrical Specifications

• Voltage: 28V
• Current: 0.04A

Configuration

• Type: Miniature incandescent lamp
• Bulb Style: Clear glass envelope
• Base Type: Miniature bayonet / press-fit style (single contact)
• Contact: Bottom contact with insulated base
• Material: Glass bulb with metal base
• Finish: Nickel-plated base
