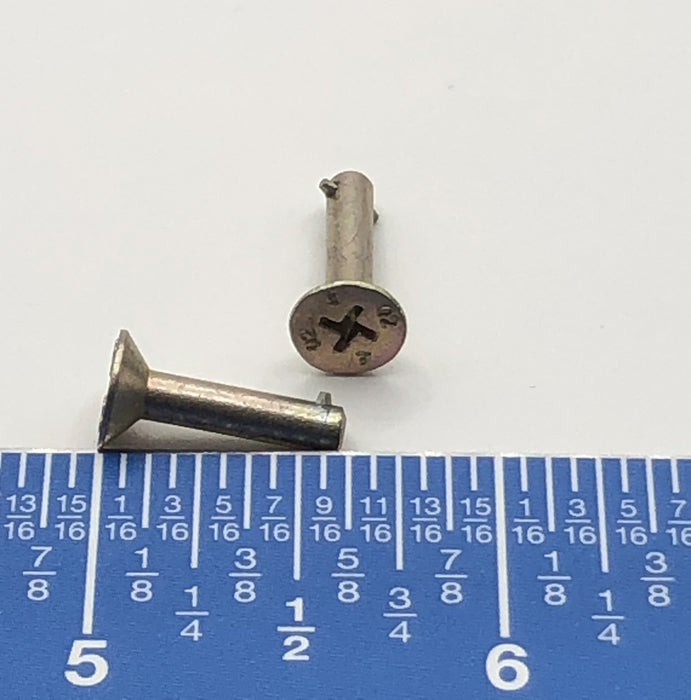

2319S03-02-1AA - Pins

Countersunk head drive pin (hammer-drive rivet) designed for permanent fastening in pre-drilled holes. The smooth shank with integral drive pin expands upon installation, creating a secure interference fit without the need for threading. The flat countersunk head allows flush installation, making it ideal for applications requiring a smooth, low-profile surface finish.

Dimensions

• Shank Length (L): 11.96 mm
• Head Diameter (W): 3.18 mm
• Overall Length (OL): 15.75 mm

Configuration

• Type: Drive pin / hammer-set rivet
• Head Style: Countersunk (flat head)
• Drive: Cross recess (Phillips-style) drive pin
• Shank: Smooth with expansion feature
• Material: Steel
• Finish: Zinc-plated (clear/silver)
