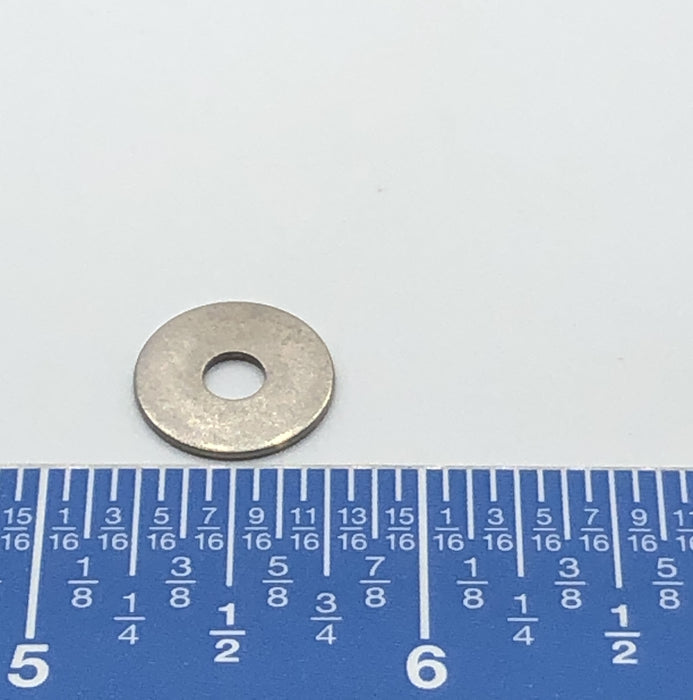

23116CA040 - Washer

Large OD fender washer designed for enhanced load distribution and improved surface coverage in fastening applications. The oversized outer diameter relative to the inner hole helps prevent pull-through and protects softer materials such as sheet metal, plastics, and composites. Suitable for use with M4 fasteners in light-duty mechanical and structural assemblies.

Dimensions

• Inner Diameter (ID): 4.28 mm
• Outer Diameter (OD): 13.98 mm
• Height (H): 0.78 mm

Configuration

• Type: Fender / large OD flat washer
• Material: Steel
• Finish: Zinc-plated (clear/silver)
• Profile: Flat, wide bearing surface
