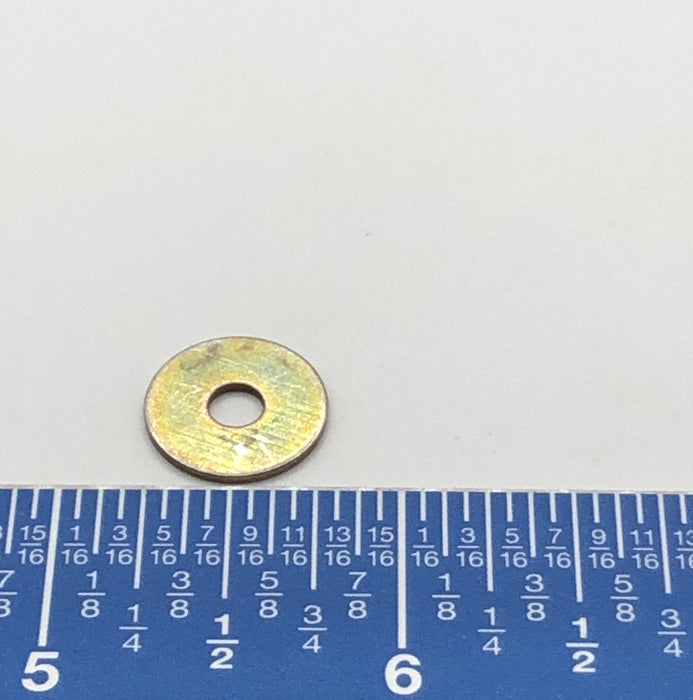

23116AG040LE - Washer

Large OD fender washer designed to provide increased load distribution over thin materials and oversized holes. The wide outer diameter helps prevent pull-through and improves surface coverage in fastening applications. Ideal for use with M4 fasteners in sheet metal, plastics, and light structural assemblies.

Dimensions

• Inner Diameter (ID): 4.19 mm
• Outer Diameter (OD): 14.04 mm
• Height (H): 0.85 mm

Configuration

• Type: Fender / large OD flat washer
• Material: Steel
• Finish: Zinc-plated (yellow)
• Profile: Wide bearing surface
