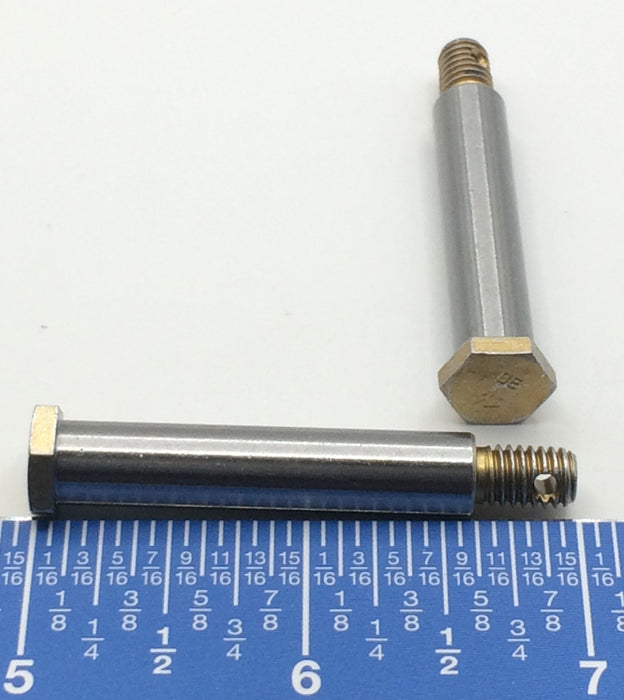

22731BE080039M - Bolt

Hex head bolt with a long, smooth unthreaded shank and a partially threaded end, designed for high-strength fastening and alignment in mechanical and structural applications. The extended shank provides excellent shear performance and precise positioning, while the threaded portion ensures secure engagement with nuts or tapped holes. Features a drilled thread end for safety wire or locking applications.

Dimensions

• Shank Length (L): 48.50 mm
• Head Width (W): 7.99 mm
• Overall Length (OL): 50.87 mm

Configuration

• Type: Hex head bolt
• Thread: Partially threaded
• Drive: External hex
• Point: Flat end
• Locking Feature: Cross-drilled thread end
