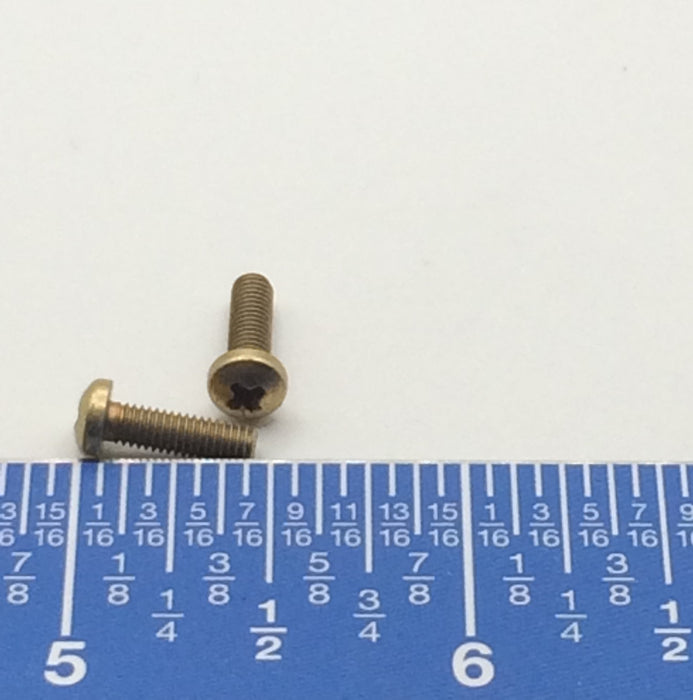

22272BC030010L - Screw

Truss head machine screw with a fully threaded shank. Features a wide, low-profile rounded head that provides increased bearing surface and is designed for use in threaded holes or with mating nuts in light-duty and precision fastening applications.

Dimensions

• Shank Length (L): 9.69 mm
• Head Diameter (W): 2.91 mm
• Overall Length (OL): 12.09 mm

Configuration

• Type: Truss head machine screw
• Thread: Fully threaded
• Drive: Phillips (cross-recess)
• Point: Flat end
