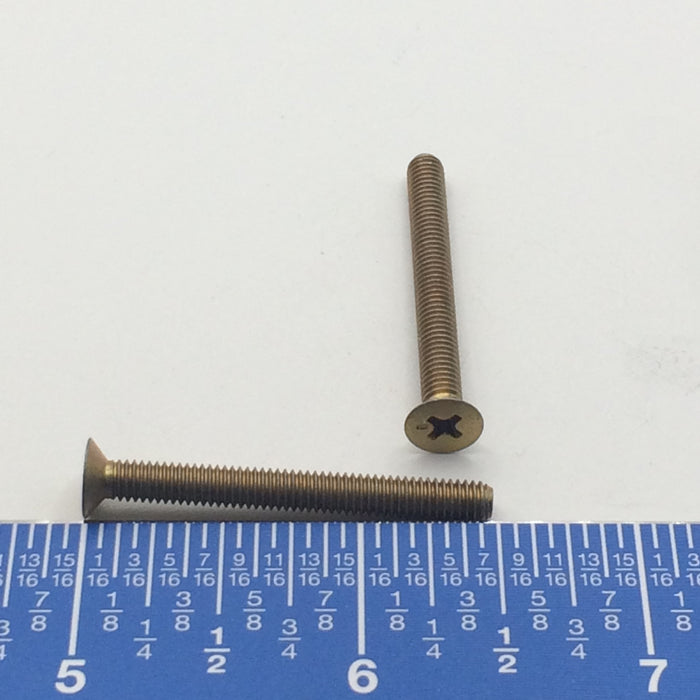

22256BC040038L - Screw

Flat head machine screw with a fully threaded shank and countersunk design. Engineered to sit flush with the mounting surface, making it ideal for applications requiring a smooth, low-profile finish. Suitable for use in threaded holes or with mating nuts in precision assemblies.

Dimensions

• Shank Length (L): 35.69 mm
• Head Diameter (W): 3.88 mm
• Overall Length (OL): 37.94 mm


Configuration

• • Type: Flat head (countersunk) machine screw
  • Thread: Fully threaded
  • Drive: Phillips (cross-recess)
  • Point: Flat end
