1N1190 - Diode

High-current stud-mount rectifier diode designed for heavy-duty power conversion applications. Engineered for reliable performance in high-voltage and high-current environments, with a rugged threaded stud for secure mounting and efficient heat dissipation.

Specifications:

• Configuration: Stud-mounted (threaded base)
• Polarity: Standard (stud typically cathode – verify for application)
• Mounting Style: Chassis / panel mount with hardware
• Peak Repetitive Reverse Voltage (VRRM): 600V
• Average Forward Current (IF): Up to ~35A (with proper heatsinking)
• Package Type: DO-5 / stud mount

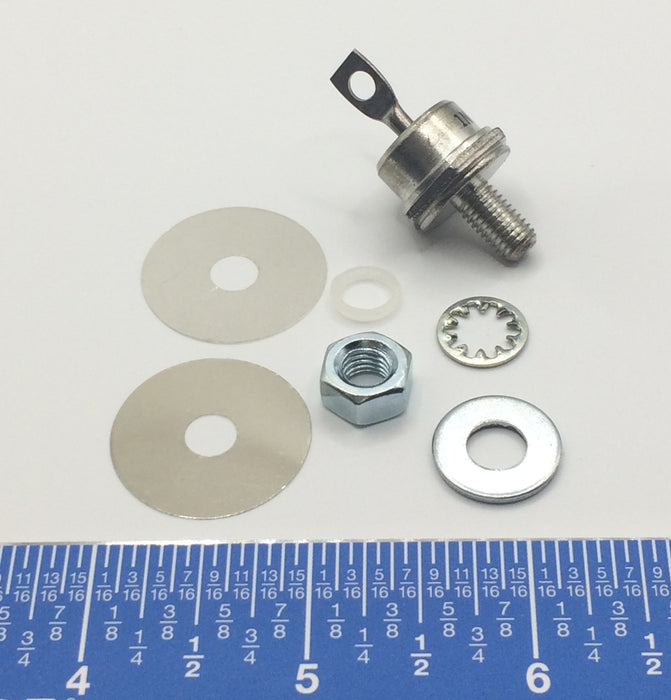

Included Hardware:

• Mounting nut
• Flat washer
• Lock washer
• Insulating washers (mica/nylon) for electrical isolation

Features:

• High current handling capability
• Efficient heat transfer through stud mounting
• Rugged construction for industrial environments
• Suitable for high-reliability rectification

Applications:

• Power supplies and rectifiers
• Battery chargers
• Motor drives and control circuits
• Industrial power equipment
