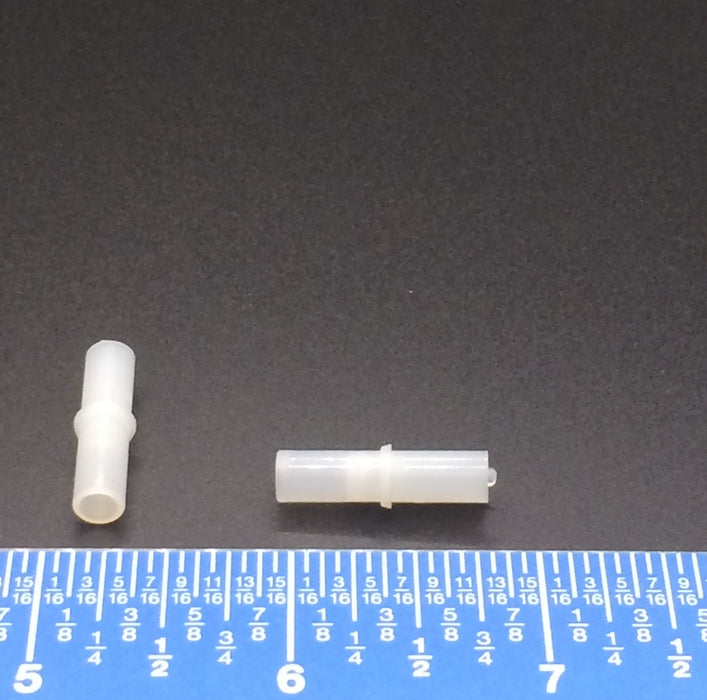

1-480349-0 - Connector Body

Cylindrical connector body housing designed to accept and retain electrical contacts for inline connections. Features a stepped profile with retention shoulders for secure assembly and alignment.

Dimensions

• Diameter (ID / L): 4.02 mm (internal bore)
• Diameter (OD / W): 6.67 mm (maximum outer diameter)
• Length (H): 22.27 mm (overall)

Configuration

• Type: Inline connector housing
• Contact Style: Accepts crimp contacts (pin/socket, application dependent)
• Features: Retention shoulder and stop flange for positioning
• Form: Cylindrical, smooth body
