BNS922 - Jack

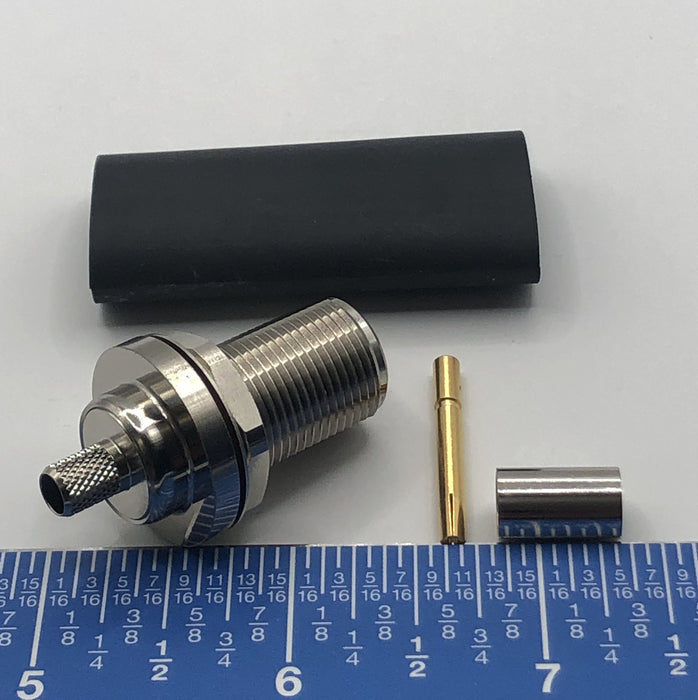

RF coaxial connector assembly designed for high-frequency signal transmission in aerospace, military, and telecommunications applications. The BNS922 connector features a threaded bulkhead-style connector body with precision machined metal construction, gold-plated center contact pin, crimp ferrule, and heat-shrink tubing for secure cable termination and shielding. Engineered to provide reliable impedance control, low signal loss, and high vibration resistance in demanding environments.

Configuration

• Type: RF coaxial connector assembly
• Connector Style: Bulkhead panel-mount coaxial connector
• Termination Method: Crimp-style center contact and ferrule termination
• Body Material: Corrosion-resistant metal alloy
• Contact Material: Gold-plated conductive alloy contact pin
• Ferrule Material: Metallic crimp sleeve
• Insulation: Heat-shrink tubing strain relief
• Mounting Style: Threaded bulkhead mount with sealing O-ring
• Features: Precision machined body, EMI shielding, vibration resistance, secure cable retention, environmental sealing capability
• Application: Aerospace RF systems, avionics communication equipment, antenna connections, coaxial cable assemblies, and military electronic systems
