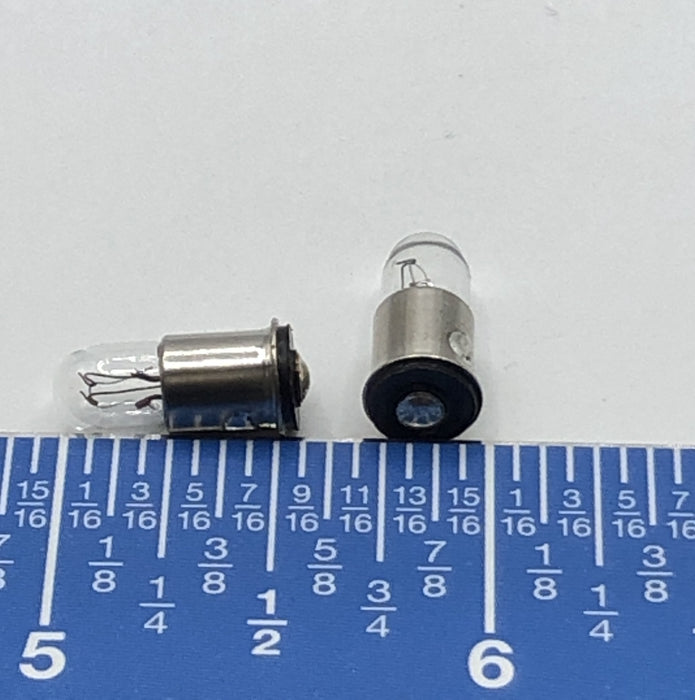

382 - Lamp

Compact miniature incandescent lamp designed for low-voltage applications requiring reliable illumination in confined spaces. This bulb features a cylindrical metal base with a glass envelope and internal filament, making it suitable for panel indicators, avionics, and instrument lighting.

Dimensions

• Overall Length (L): 14.76 mm
• Diameter (D): 6.14 mm

Electrical Specifications

• Voltage: 14V
• Lamp Type: Incandescent

Configuration

• Base Type: Miniature bayonet-style (single contact)
• Contact: Bottom contact with side shell ground
• Envelope: Clear glass
• Filament: Tungsten wire filament

Features

• Compact size for tight installations
• Reliable warm light output
• Simple push-and-twist installation (bayonet base)
• Suitable for vibration-prone environments
• Long service life for indicator applications
